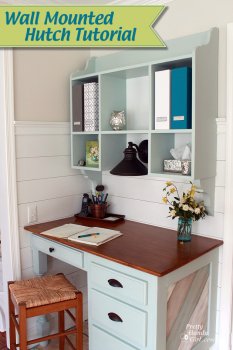

wall_mounted_hutch_tutorialHave you heard the term sandbox when talking about software development? It’s the term used for the testing area where the engineers can “play” with their ideas before they go live to the public. Well, this little kitchen desk and hutch (kitchen command center) was my sandbox before I ordered our kitchen cabinets. It was my place to play with colors and style before making the very big step of ordering all the kitchen cabinets. When I had finished with the desk and hutch I was so thoroughly smitten with the colors that I had no problem ordering most of my kitchen cabinets in the same Sherwin Williams Copen Blue color!

Last week I showed you how I raised and transformed the Habitat ReStore desk into a counter-height desk. At the same time I bought the desk, I found a sheet of finish grade plywood that was an old folding table top. At $25 for the sheet, I brought it home and used it to create a wall-mounted hutch. After mounting it on the wall, I worked with my electrician to wire a lamp in the hutch. (Exterior wall mounted light from Lowe’s.) The result is a charming cottage style desk and hutch where I keep our lives organized!

full_kitchen_desk_command_center_subfloor

Are you ready to build your own wall-mounted hutch? Grab your tape measure and saw and let’s get busy!

Materials:

  • 1 sheet finish grade plywood (or several 10″ maple or poplar boards)
  • Jig saw
  • 1 Fat corbel (or two narrow corbels/shelf brackets)
  • Box of 1.5″ wood screws
  • Tape measure
  • Level
  • Drill with drill bits
  • Kreg Jig
  • Sander
  • Hand saw
  • Clamps
  • Wood glue
  • Finish nails
  • 1 Sheet of beadboard
  • Hammer
  • Pkg. of brad nails
  • Pencil

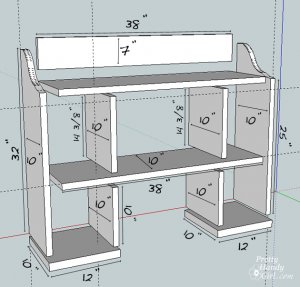

dimensions_of_hutchInstructions:

Begin by cutting all your boards into the dimensions below. The two side boards should be 32″ tall before cutting the profile into the top.

To cut the profile into the top of the side pieces, trace your corbel onto the 32″ side board. (I turned the corbel on it’s side for a wider profile.)

Cut out the profile with a jigsaw.

Trace the same profile onto the second side and cut with a jig saw.

You should have two sides with matching top profiles.

Dry fit all your boards together. Make any adjustments to size now. (I also made sure my lamp was going to fit in the hutch.)

trace_corbel

At this point I decided that my corbels were too chunky for my hutch, so I set one up on the bandsaw and cut it in half.

The corbel was a little too tall for the bandsaw, so I finished the cut with a universal handsaw.

Sand both corbels (they will now be the shelf brackets for the hutch.)

Sand all the parts of your hutch until they are smooth. (Don’t you just love when you find a random shot on your camera from when the hubster snuck up to take your picture when you looked like a psycho maniac sander? Yup.)

To assemble your hutch, begin by setting the top shelf into position against the sides. (I found it helpful to clamp the middle and bottom dividers to act as guides for the shelf placement.)

Check that the shelf is square.

Mark on the outside of the side where to drill pilot holes for the screws. Drill holes and drill a small countersink hole to recess the screw head.

Attach the top shelf and the top back piece with wood screws. Repeat the process for the other shelf.

A view of the hutch with the top shelf secured by screws:

To secure the middle shelf dividers, drill pilot holes and countersink four screws per divider as shown below:

The bottom two shelf dividers will be secured with pocket hole joinery (see details below). The two bottom shelves of the hutch are then secured with wood screws.

cut_out_profile_jigsaw trace_onto_second_board two_sides_wall_hutch dry_fit_pieces_together
